安全阀，内螺
pdf
图纸和规范
| 编号 | 口径 | 泄水口径 | 设定压力 |
|---|---|---|---|
| 513615 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 1.5 bar |
|
|
|
||
| 513620 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 2 bar |
|
|
|
||
| 513625 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 2.5 bar |
|
|
|
||
| 513630 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 3 bar |
|
|
|
||
|
2D drawings
3D models
 igs
分享
下载
 stp
分享
下载
产品概述

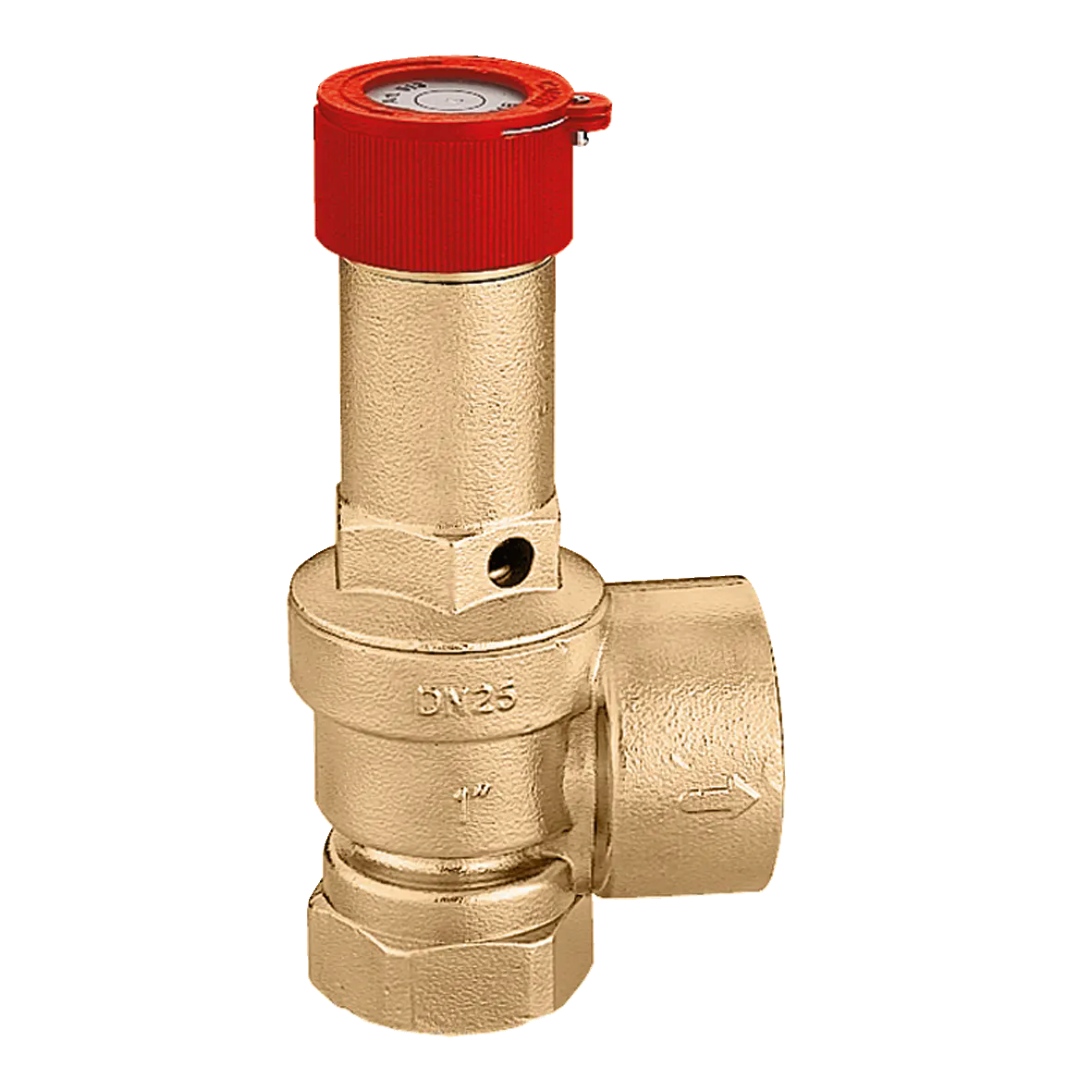

卡莱菲，513630。普通型安全阀。内螺连接。最大泄压压力：20% 。关闭压力：20%。口径：G 1" (ISO 228-1) F。泄水接口:G 1 1/4" (ISO 228-1) F。耐温: 5–110 °C。设定压力：3 bar。耐压: PN 10。
|
|||
| 513635 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 3.5 bar |
|
|
|
||
| 513640 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 4 bar |
|
|
|
||
| 513655 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 5.5 bar |
|
|
|
||
| 513660 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 6 bar |
|
|
|
||
| 513670 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 7 bar |
|
|
|
||
| 513680 | G 1" (ISO 228-1) F | G 1 1/4" (ISO 228-1) F | 8 bar |
|
|
|
||
| 513725 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 2.5 bar |
|
|
|
||
| 513730 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 3 bar |
|
|
|
||
| 513735 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 3.5 bar |
|
|
|
||
| 513760 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 6 bar |
|
|
|
||
| 513770 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 7 bar |
|
|
|
||
| 513780 | G 1 1/4" (ISO 228-1) F | G 1 1/2" (ISO 228-1) F | 8 bar |
|
|
|
||
