R69276

活接螺母及O型圈。

Go to

下载图片

产品描述

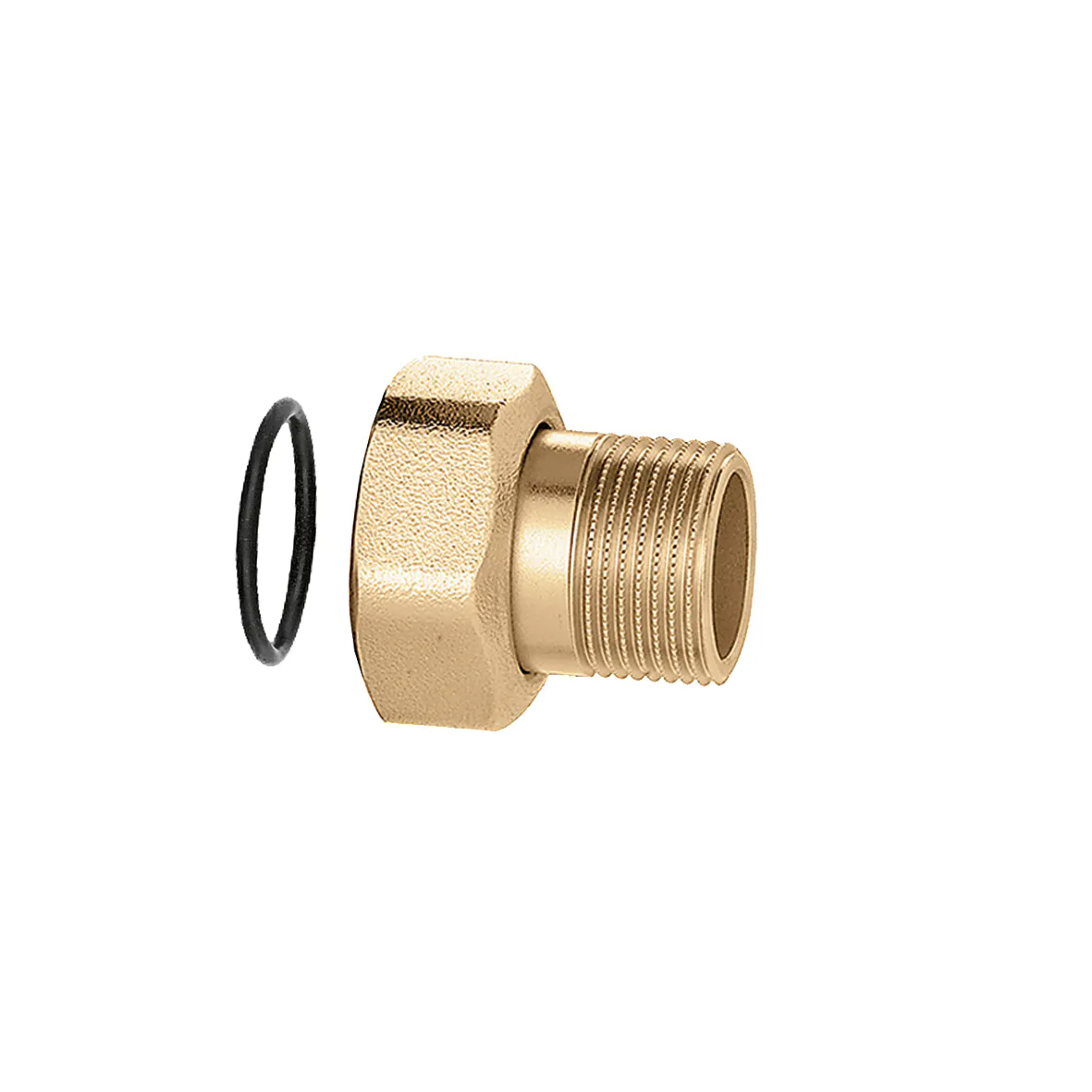

Tailpiece, nut and O-Ring.
For motorized zone valves 6470, 6480, 6489, 6490, 6452, 6453, 6459, 6442, 6443 and 6444 series.

下载

图纸和规范

编号	Nut connection	Tailpiece connection
R69276	G 1" (ISO 228-1) F	G 1/2" A (ISO 228-1) M

3D models bim 产品概述 CALEFFI, R69276. Tailpiece, nut and O-Ring. For motorized zone valves 6470, 6480, 6489, 6490, 6452, 6453, 6459, 6442, 6443 and 6444 series. nut connection: G 1" (ISO 228-1) F. tailpiece connection: G 1/2" A (ISO 228-1) M.
R69277	G 1" (ISO 228-1) F	G 3/4" A (ISO 228-1) M

3D models bim 产品概述 CALEFFI, R69277. Tailpiece, nut and O-Ring. For motorized zone valves 6470, 6480, 6489, 6490, 6452, 6453, 6459, 6442, 6443 and 6444 series. nut connection: G 1" (ISO 228-1) F. tailpiece connection: G 3/4" A (ISO 228-1) M.
R69280	G 1 1/4" (ISO 228-1) F	R 1" (EN 10226-1) M

3D models bim 产品概述 CALEFFI, R69280. Tailpiece, nut and O-Ring. For motorized zone valves 6470, 6480, 6489, 6490, 6452, 6453, 6459, 6442, 6443 and 6444 series. nut connection: G 1 1/4" (ISO 228-1) F. tailpiece connection: R 1" (EN 10226-1) M.
R59466	G 1 1/4" A (ISO 228-1) M	G 1 1/4" (ISO 228-1) F

3D models bim 产品概述 CALEFFI, R59466. Tailpiece, nut and O-Ring. For motorized zone valves 6470, 6480, 6489, 6490, 6452, 6453, 6459, 6442, 6443 and 6444 series. nut connection: G 1 1/4" A (ISO 228-1) M. tailpiece connection: G 1 1/4" (ISO 228-1) F.
