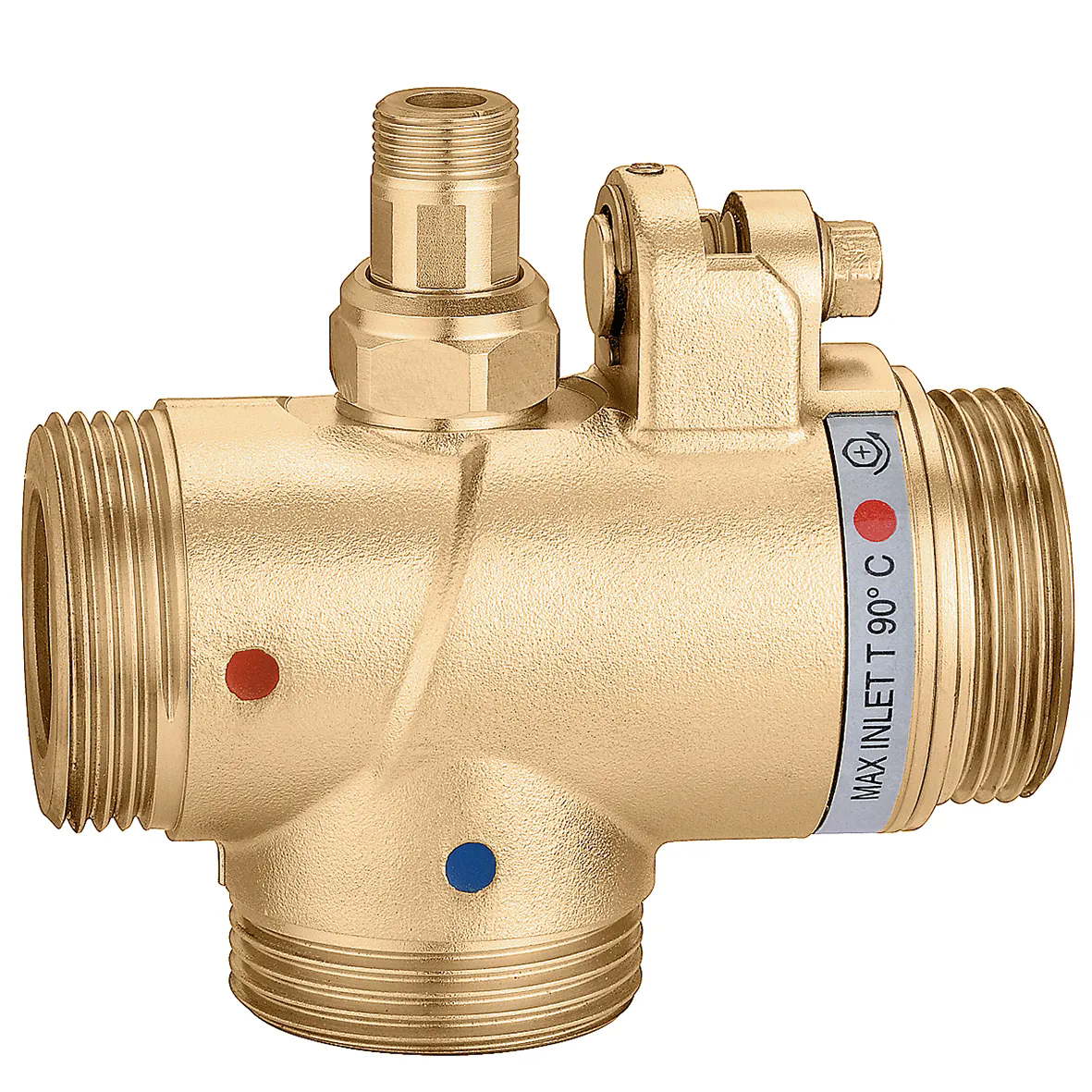

可调式恒温混合阀，适用于集中式热水系统。带热水循环接口。
pdf
图纸和规范
| 编号 | 口径 | 备注 | 可调温度范围 |
|---|---|---|---|
| 524400 | G 1 1/8" A (ISO 228-1) M | (*) | 30–65 °C |
|
DN
DN 15 (body)
|
Kv
1.4 m³/h
|
||
| 524500 | G 1 1/4" A (ISO 228-1) M | - | 30–65 °C |
|
DN
DN 20 (body)
|
Kv
2.5 m³/h
|
||
| 524600 | G 1 1/2" A (ISO 228-1) M | - | 30–65 °C |
|
DN
DN 25 (body)
|
Kv
4.0 m³/h
|
||
| 524700 | G 2" A (ISO 228-1) M | - | 30–65 °C |
|
DN
DN 32 (body)
|
Kv
7.7 m³/h
|
||
| 524800 | G 2 1/4" A (ISO 228-1) M | - | 36–60 °C |
|
DN
DN 40 (body)
|
Kv
11.5 m³/h
|
||
| 524900 | G 2 3/4" A (ISO 228-1) M | - | 36–60 °C |
|
DN
DN 50 (body)
|
Kv
15.0 m³/h
|
||
